Pedestals & Housings for mounting card readers, intercoms, cameras, etc.

These housings, pedestals and adapters are typically used for the installation of card readers, intercoms and other devices at vehicular and pedestrian access points.
(Click on an image for more information)
Standard Housings & Pedestals
Call 800-377-4636 or send email to sales@epsinfo.com for pricing

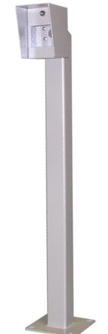

H081206-1 8" X 12" Stock Housing with 306-6 Pedestal

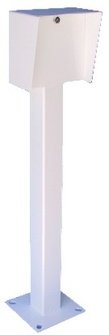

9050-1-1 Stock 14" X 9" Housings with 306-6  Pedestals
H080606 8" X 6" Housing

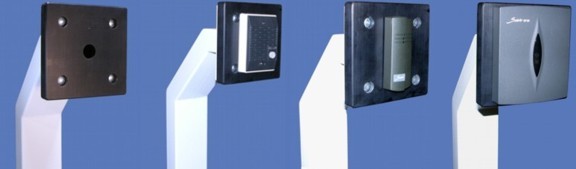

Acrylic adapter / spacer (P/N MCH5355-MSE12) to mount one or two gang devices to the pedestal without a housing. Other styles available.
Custom Housings & Pedestals
Over the years we have developed a library of hole patterns for over 1,000 popular security components of all kinds: card readers, keypads, intercoms, cameras, and more. Thus, when asked to suggest a housing we will first inquire about the brand and model of each component that is to be installed in it. We can then recommend a housing specifically suited for those components, including holes and cutouts for installing them in the panel. We even include mounting hardware if we think it is not provided with a component. We strive to make our part of your installation as “turn-key” as possible.

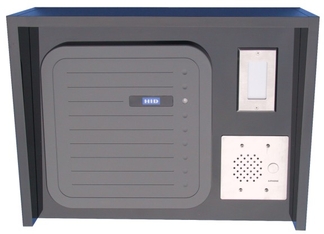

EPS acrylic housings are generally used to install a long-range proximity card reader and one or more other components on a pedestal.
Click on the image to go to details

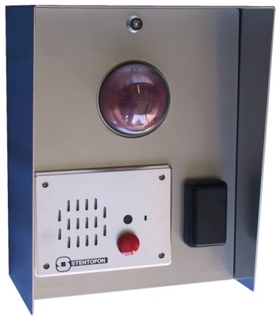

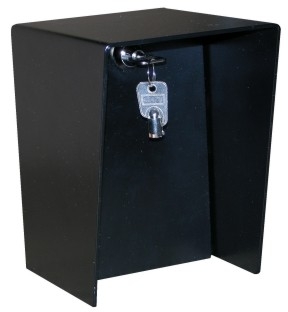

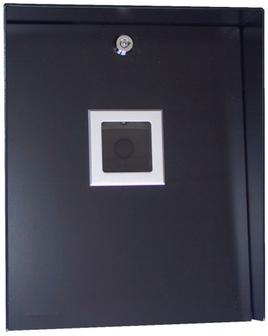

EPS custom housings are designed specifically for use at vehicular and pedestrian access points. Card readers, intercoms, cameras and other security devices are attached to the lockable, tilt-in panel. These housings can be attached to pedestals, walls or other surfaces. Made of 12-gauge steel, they are zinc plated and powder coated for enhanced rust resistance.
Click on the image to go to details / literature download page.
EPS S3S series pedestals are used with EPS housings and acrylic products. They are made of 3” square, 11-gauge steel tubing. Pedestals are sandblasted, zinc-plated, and powder coated for enhanced rust resistance. A base plate, base plate cover, and flange are included with each pedestal. Pedestals mount to a concrete surface using anchor bolts (not provided). Pedestal dimensional tolerance is +/- ½”. Contact EPS for non-standard sizes, special features or special colors.

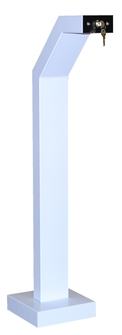

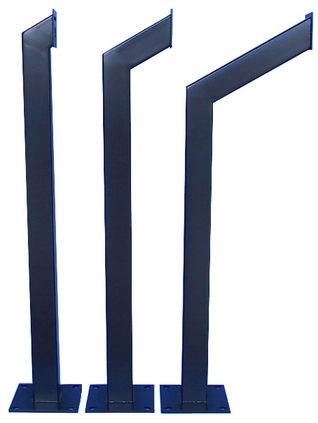

Style 3 pedestals have 30-degree arms with lengths ranging from 2” to 12” (2”, 6”, and 12” standard). For longer arms a Style 4 stanchion is recommended. Standard height for automobile access is 36” if the stanchion is mounted on a raised island or 42” if it is attached to the road surface. Heights of 42”- 48” are suitable for walk-up/ADA applications. Heights of 48”- 66” are useful for service vehicles and heights of 72” and above accommodate large trucks.
Click on the image to go to details / literature download page.

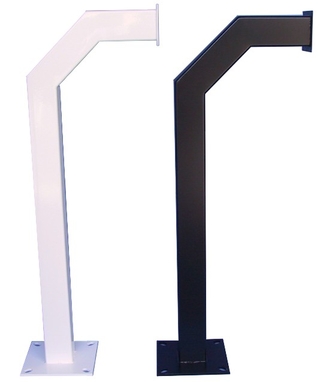

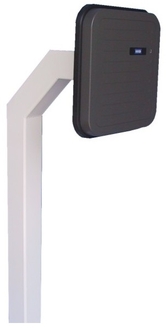

Style 4 pedestals are functionally equivalent to the Style 3 pedestals, but they have two-piece arms. The first piece meets the vertical post at a 45-degree angle. The second is horizontal. Standard Style 4 stanchion arm lengths are 6”, 12”, 18” and 24”. For arms shorter than 6” a Style 3 stanchion is recommended.
Click on the image to go to details / literature download page.

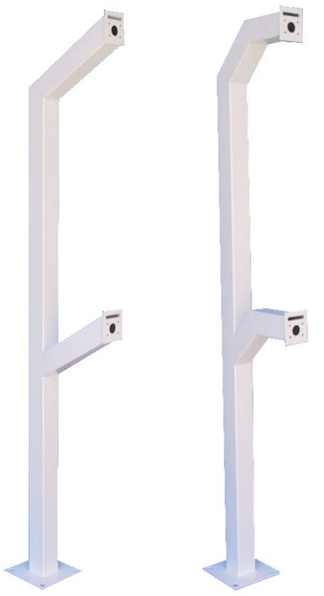

Dual height pedestals have two arms at different heights to accommodate both cars and trucks. They have the same basic features of the single arm Style 3 and Style 4 pedestals.
Click on the image to go to details / literature download page.
Some examples of custom and stock pedestals and housings are below
Call 800-377-4636 or send an email to sales@epsinfo.com for quotation
MCH5375 Acrylic Spacer for Long Range Reader
MCH5375 Acrylic Spacer for Long Range Reader

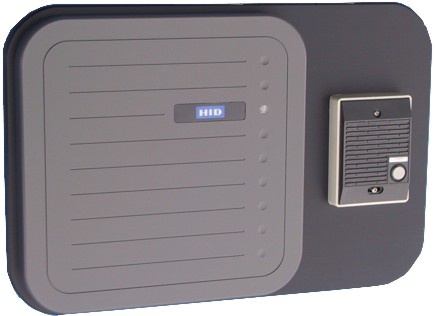

MCH5375/LED Acrylic Spacer for Long Range Reader and Intercom
MCH5375/LED Acrylic Spacer for Long Range Reader and Intercom
MCH5375WC Acrylic Weather Cover for Long Range Reader
MCH5375WC Acrylic Weather Cover for Long Range Reader

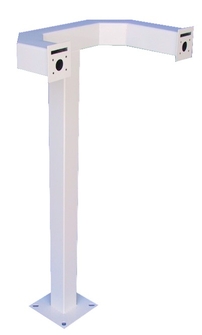

T-pedestal
T-Pedestal
GNC-1 42" Pedestal
GNC-1 42" Pedestal
